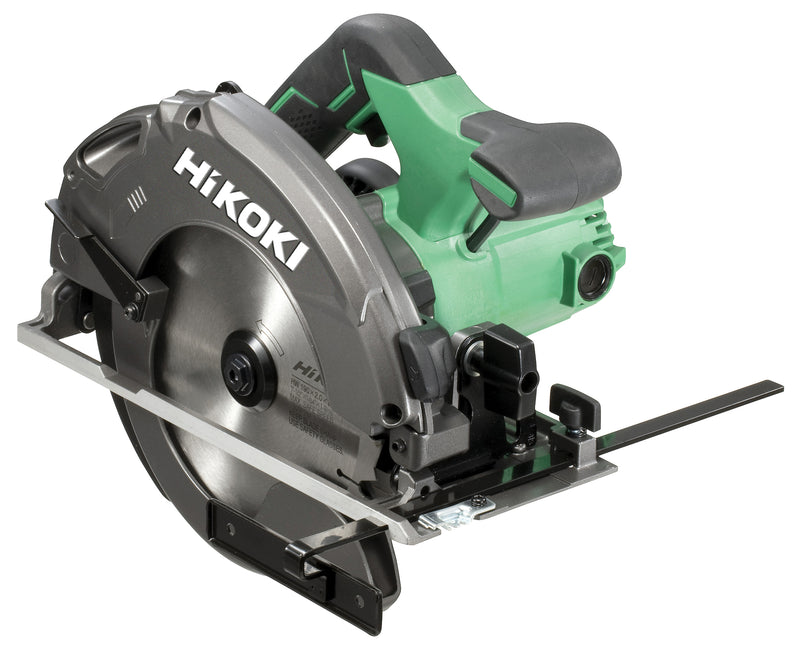

HiKOKI C7U3J6Z 1300W, 190mm Circular Saw, 240V

HiKOKI C7U3J6Z 1300W, 190mm Circular Saw, 240V

SKU C7U3J6Z
Availability:
in stock, ready to be shipped
£0.00 - £0.00
£0.00
£184.74 inc. VAT
£153.95 - £153.95
£184.74 inc. VAT

C7U3J6Z C7U3J6Z 1300W, 190mm Circular Saw, 240V


1,300 W 190 mm Circular Saw with 66 mm cutting depth and rivet knive


Features and Benefits:

  • Auto stop carbon brushes for a long tool lifetime Optimal saw blade visibility from both sides guarantees high-precision cuts Equipped with a rivet knive to prevent jamming and to guarantee high user safety Integrated blower function for an optimal visability on the workpiece Equipped spindle lock for fast and easy blade change


Technical Specifications:

Blade Diameter 190 mm Maximum Bevel Angle 45 ° Maximum Cutting Depth (0°) 66 mm Maximum Cutting Depth (45°) 48 mm Joint Dust Collector Yes Blade Notch Adjustment Yes Material: Base ADC Material: Lower Guard ADC Material: Link Steel Riving Knife Yes Blade Side Right Soft Grip Yes Blower Yes Mount Hole Diameter 30 mm Switch Lock OFF lock Material: Gear Cover ADC Input power 1 300 W Power Frequency 50 Hz Motor Type With Brush Power Cord Length 4 m Power Cord Type Vinyl Two-core cabtire cable Phase Number of Motor Single-Phase Power Source AC Voltage 230 V Weight 4,7 kg Tool Length 314 mm Tool Width 227 mm Tool Height 250 mm JAN/EAN code 4 966 376 292 653 Vertical Angulation Adjustment Function Yes

Supplied With:

Short lever (with screw) (Europe only) Tungsten carbide tipped (TCT) saw blade Hex. bar wrench (6 mm) Guide (with wing bolt and spring) Dust collector (Europe only) Blow Case
