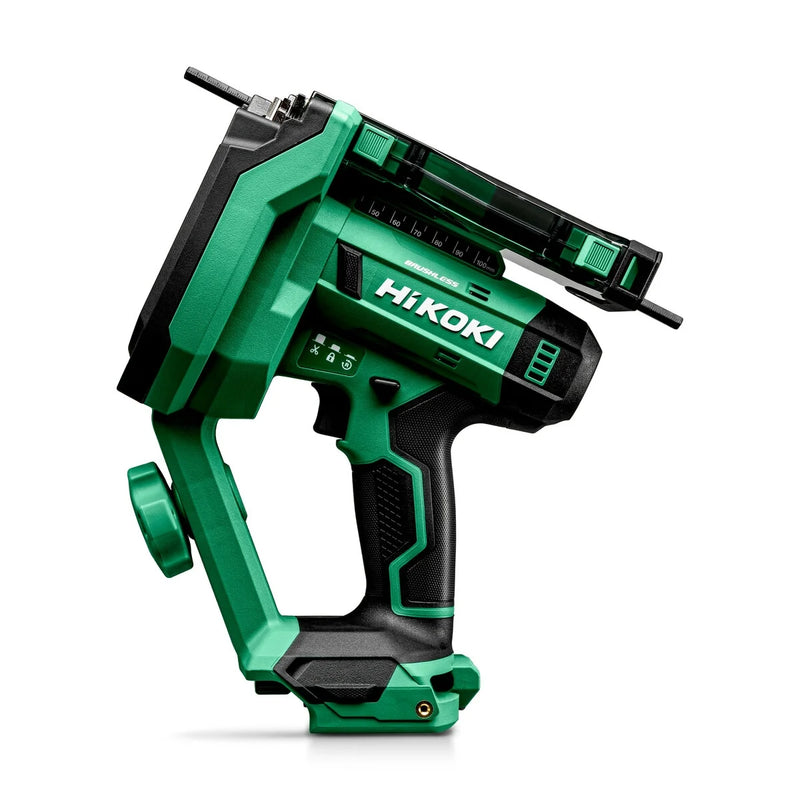

HiKOKI CL18DAW2Z 18V Brushless Threaded Rod Cutter in Case

About the HiKOKI CL18DAW2Z 18V Brushless Threaded Rod Cutter in Case

The HiKOKI CL18DAW2Z 18V brushless threaded rod cutter makes clean, burr-free cuts in mild-steel rod up to M12, ready for direct nut fitting on site.

Designed for professional mechanical, electrical and building-services installation work, the CL18DAW2Z can cut threaded rod to length before installation or trim it directly at cable trays, ventilation ducts and other structures. Its cold-cutting action produces no sparks or metal dust and keeps noise and vibration low, reducing clean-up and avoiding the filing normally needed before fitting a nut.

Key features and benefits

• Clean, burr-free cuts: the cut end is ready for a nut to be fitted directly, without additional reworking.
• Wide threaded-rod capacity: cuts mild-steel sizes W5/16, W3/8, W1/2, M6, M8, M10 and M12, plus W3/8 stainless-steel rod.

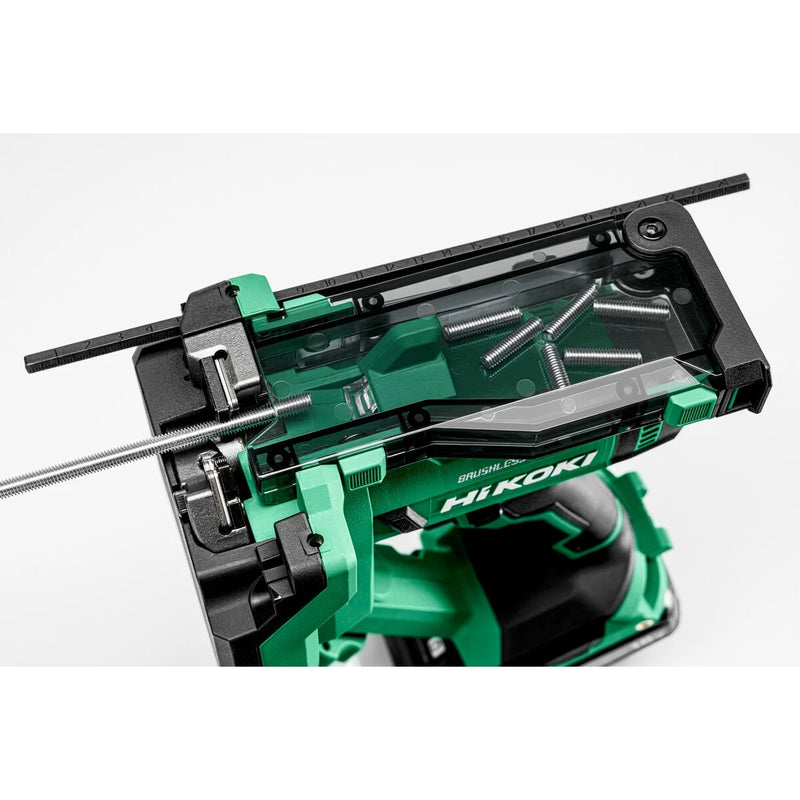

• Accurate repetitive cutting: the length stop and scale help produce consistent series cuts.
• Cleaner working area: a removable collection box catches cut-off ends and can be emptied with one hand.
• Made for overhead work: one-hand operation and a balanced design support controlled cutting on installed services.
• Brushless motor: provides high power with reduced wear and a long service life.
• Clear cut-line visibility: an integrated LED illuminates the cutting area.
• Site-ready handling: a shoulder strap and hanging hook support safer use on scaffolding.

Applications

• Cutting threaded rod to length before installation
• Trimming installed rod at cable trays and ventilation ducts
• Clean, spark-free threaded-rod cutting in metalworking and building-services applications

Key specifications

• Product ID: CL18DAW2Z
• EAN: 4966376420223
• Battery voltage: 18 V
• Motor: Brushless
• No-load cutting rate: 28 cuts/min
• Mild-steel threaded-rod capacity: W5/16, W3/8, W1/2, M6, M8, M10 and M12
• Stainless-steel threaded-rod capacity: W3/8
• Minimum cutting dimension: 20 mm
• Dimensions: 186 x 112 x 301 mm
• Weight without battery: 2.5 kg
• Vibration: less than 0.8 m/s²

What's included

• HiKOKI CL18DAW2Z threaded rod cutter
• M8 cutter
• W3/8 spacer
• M8 spacer
• M6 cutter
• M6 spacer
• M8 trimmer
• Hex bar wrench
• Scale
• Collection box
• Shoulder strap
• Stackable System Case 3

Please note: HiKOKI's published scope of delivery does not list a battery or charger.
