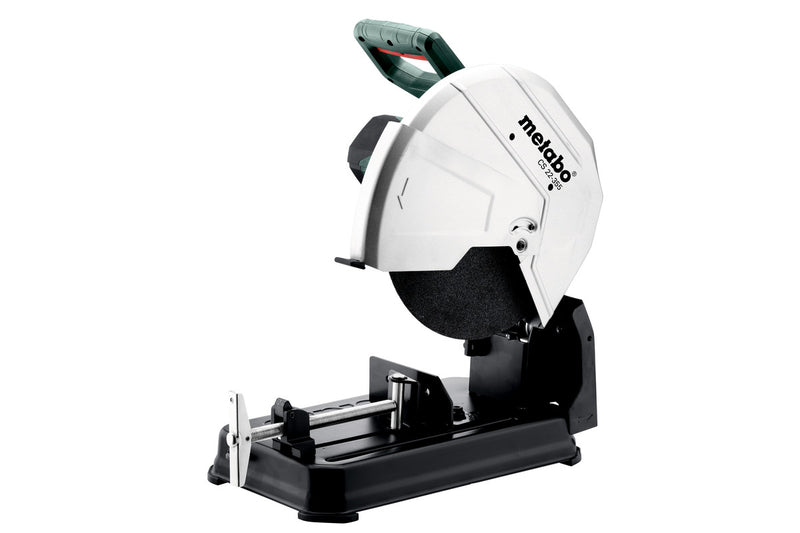

Metabo CS 22-355 (601786390) 110V Metal Chop Saw

About the Metabo CS 22-355 (601786390) 110V Metal Chop Saw

Metabo CS 22-355 (601786390): Powerful metal chop saw for cutting of profiles, pipes and rods made of steel, NF metals, iron and cast profiles.

Quick clamping device with variable mitre setting for angled cuts from -15° to 45°.

Key features and benefits

• Powerful metal chop saw for cutting of profiles, pipes and rods made of steel, NF metals, iron and cast profiles
• Quick clamping device with variable mitre setting for angled cuts from -15° to 45°
• Large handle transversal to the cutting axis for optimum power transmission while cutting
• Adjustable cutting depth limiter for optimum use of the cutting disc
• Easy, fast disc change with spindle lock
• Maximum user safety: swivelling cutting guard, adjustable spark deflector sheet and rubberised base for safe cutting
• Safety switch for protection against accidental start up
• Robust, large machine table with practical storage for hexagonal wrenches
• Easy to transport due to built-in handle and locking device

Key specifications

• Product code: 601786390
• EAN: 4061792211810
• Power source: Corded
• Product group: Metal Chop Saw
• Grinding wheels (Ø x bore): 355 x 25.4 mm
• No-load speed: 3700 rpm
• Rated input power: 2300 W
• Max. cutting capacity round tube: 132 mm
• Max. cutting capacity square tube: 120 x 120 mm
• Max. cutting capacity rectangular tube: 100 x 208 mm
• Max. cutting capacity L-profile: 150 x 150 mm
• Dimensions of the base plate: 456 x 256 mm
• Transport height: 394 mm
• Weight: 16.8 kg
• Dimensions: 485 x 323 x 600 mm
• Cable length: 4 m

What’s included

• Hexagonal wrench
• Inner support flange
• Flange nut
• Cutting disc 355 mm
