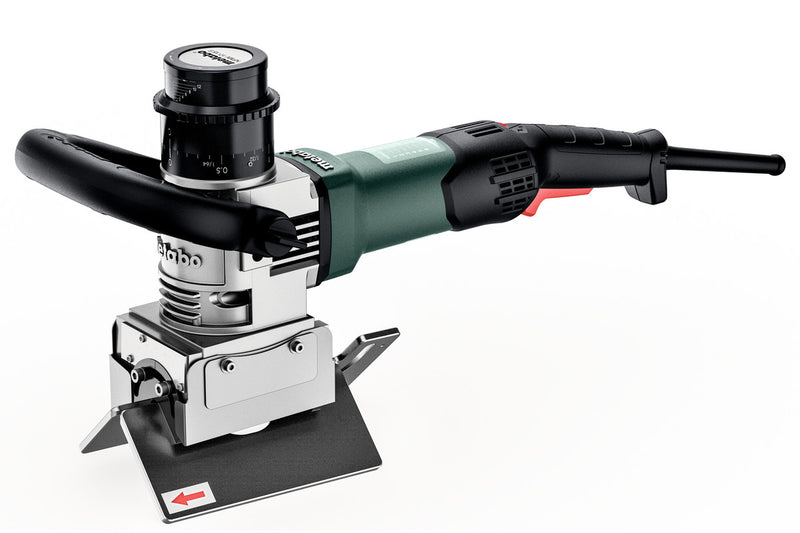

Metabo KFMV 17-15 F (601770610) 110V Bevelling Tool for Metal

About the Metabo KFMV 17-15 F (601770610) 110V Bevelling Tool for Metal

Metabo KFMV 17-15 F (601770610): Metal bevelling tool for chamfer heights up to 15 mm for weld seam preparation.

One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working.

Key features and benefits

• Metal bevelling tool for chamfer heights up to 15 mm for weld seam preparation
• One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working
• Precise setting of the chamfer angle directly via the guide plates
• Universal milling head with three carbide indexable inserts for all chamfer angles from 0-90°
• Guide stop for a uniform finish and high quality surface finish when processing straight edges
• Controlled working by virtue of large-scale guide plates
• Stop roller to guide along pipes for easy preparation of weld seams
• Bail handle adjusts without tools for secure, even guiding
• Metabo Marathon-motor with patented dust protection for long service life
• Vario-Tacho-Constamatic (VTC)-Full Wave Electronics with Thumbwheel: for working at customised speeds to suit the application material and speeds that remain almost constant, even under load
• Electronic overload protection, soft start and restart protection
• Slim design for ideal handling
• Protection of the user by virtue of lateral plates for conveying the chips
• With metaBOX, the intelligent solution for transport and storage

Key specifications

• Product code: 601770610
• EAN: 4061792261846
• Power source: Corded
• Product group: Bevelling Tool for Metal
• No-load speed: 6200 - 12000 rpm
• Rated input power: 1400 W
• Output power: 740 W
• Type of edges: Chamfer
• Chamfer angles: 0 - 90 °
• Max. chamfer width 45°: 21 mm
• Max. chamfer height at 45°: 15 mm
• Grading of cutting depth setting: 0.1 mm
• Curves smallest outer Ø: 100 mm
• Weight (without power cable): 6.3 kg

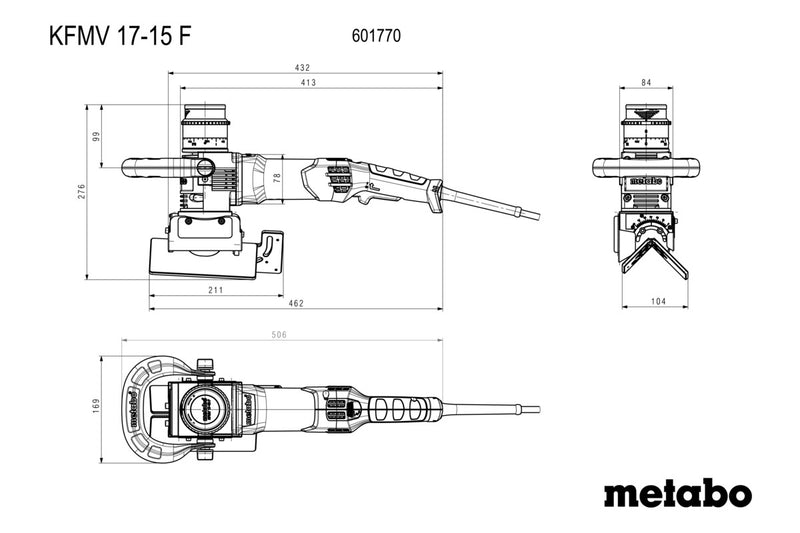

• Dimensions: 506 x 169 x 276 mm
• Weight: 6.3 kg
• Cable length: 3.9 m

What’s included

• 3 Carbide indexable inserts Universal
• Stop roller
• Screwdriver for Torx screws 15
• Screwdriver SW 4 with T-handle
• Open-jawed spanner SW 10
• Bow-type handle
• metaBOX 185 XL
