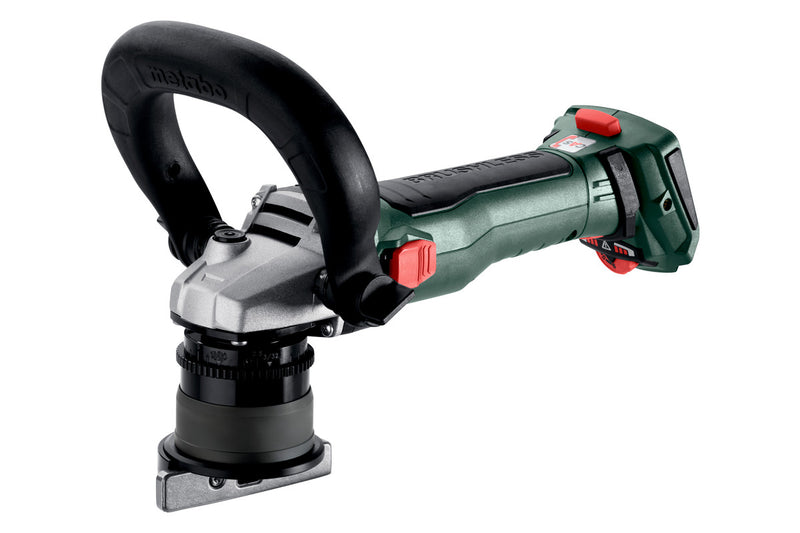

Metabo KFMVB 18 LTX BL 4 RF (601769840) 18V Brushless Cordless Bevelling Tool for Metal - Body Only

About the Metabo KFMVB 18 LTX BL 4 RF (601769840) 18V Brushless Cordless Bevelling Tool for Metal - Body Only

Metabo KFMVB 18 LTX BL 4 RF (601769840): High-power cordless beveling tool for metal with brushless motor for easy and quick preparation for subsequent coating.

For creating 45° chamfers up to 4 mm and radii of 2 and 3 mm on interior and exterior edges, as well as for rounding off the edges of drill holes.

Key features and benefits

• High-power cordless beveling tool for metal with brushless motor for easy and quick preparation for subsequent coating
• For creating 45° chamfers up to 4 mm and radii of 2 and 3 mm on interior and exterior edges, as well as for rounding off the edges of drill holes
• With thrust ring for efficient deburring of sheets 0.7 mm and larger
• Small metal chips are generated during trim routing (no metal dust that is a health hazard)
• Surfaces free from oxide and burrs as ideal preparation for the application of powder or paint coatings for maximum protection from corrosion
• One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working
• Slim milling head and ball bearing stationary seal ring for working in pipes and on curves
• Guide stop for a uniform finish and high quality of the surface when processing straight sheets
• Variable speed setting with thumbwheel for working on materials requiring customised speeds, and at speeds which remain constant under load
• fast brake for increased safety with fast stopping of the tool used.
• Battery pack can be rotated in 90°steps for best ergonomics in any working position
• Electronic overload protection, soft start and restart protection
• Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com

Key specifications

• Product code: 601769840
• EAN: 4061792263802
• Power source: Cordless
• Product group: Cordless Bevelling Tool for Metal
• Battery voltage: 18V
• No-load speed: 4000 - 8600 rpm
• Type of edges: Chamfer and radius
• Max. chamfer width 45°: 6 mm
• Max. chamfer height at 45°: 4 mm
• Possible radii: R2 / R3
• Grading of cutting depth setting: 0.1 mm
• Curves smallest internal Ø: 13 mm
• Weight without battery pack: 2.3 kg
• Weight with battery pack: 2.7 kg

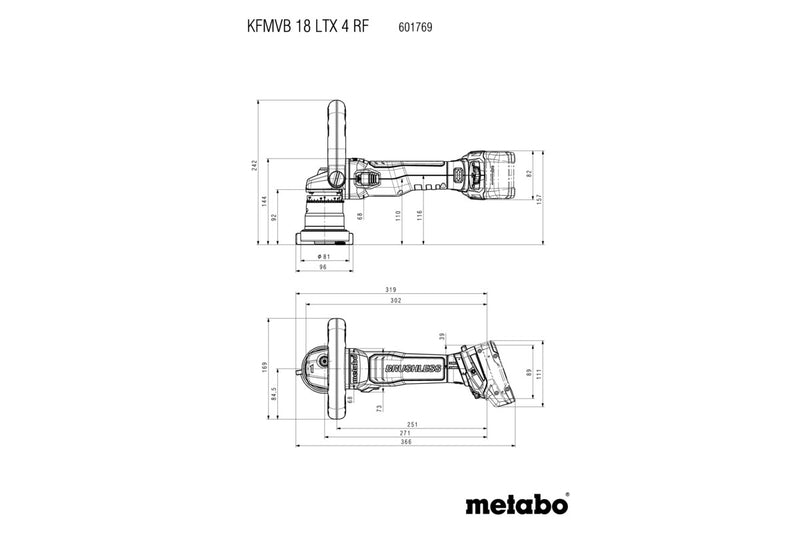

• Dimensions: 320 x 169 x 238 mm
• Weight: 2.7 kg

What’s included

• 2 Carbide indexable inserts 45° chamfer
• 2 Carbide indexable inserts radius R2
• 2 Carbide indexable inserts radius R3
• Thrust ring
• Guide Stop
• Screwdriver for Torx screws 15
• Bow-type handle
• Dust Protection Filter
• metaBOX 215
• Supplied as a body-only machine; battery and charger are not included
